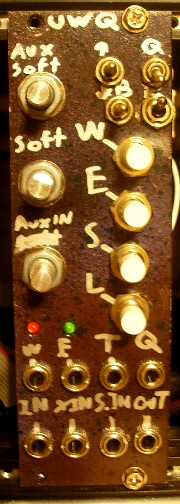

User Writable Quantizer
This is a unique quantizer capable of doing microtonal and octave dependent scaling.
-Unique interface for creating scales
-"Softness" control allows for morphing from unquantized to quantized voltages
-Built in sample hold circuit
-Save scales on EEPROM
-Bi-polar or unipolar operation.
For complete descriptions of the way the module is used, and how to build it, download this PDF file.
For a mumbly video demo of this module check this out.
Boards are available now. Price for 1 board and 1 preprogrammed
PIC $22. The current batch of boards are missing the value designator
on the silkscreen layer, see
this note for more information.
There is a blank panel available for this project. It is 12 HP and is drilled like this module. For more information on blank panels, read this.

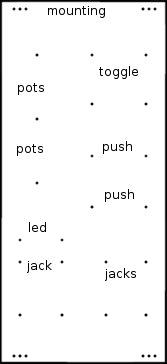

If you'd like to drill your own panel, feel free to use my layout here. That image should be printed at 72dpi to scale correctly.
