Digital Hi Hat

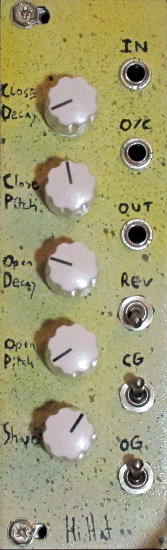

This is a PIC based percussion module which is loosely modeled on the hi-hat. It features seperate Decay and Pitch controls for Open/Close modes and a master Shape control which mixes between a linear or logarithmic decay. This module is also compatable with the BMC003X Expander for using external CV for all of it's parameters.

For complete information on this module and some mp3 demos, download this PDF file.

A PCB/PIC set are for sale for $18.
Unfinished panels are for sale for $8 each. Please read this page on unfinished panels before ordering.

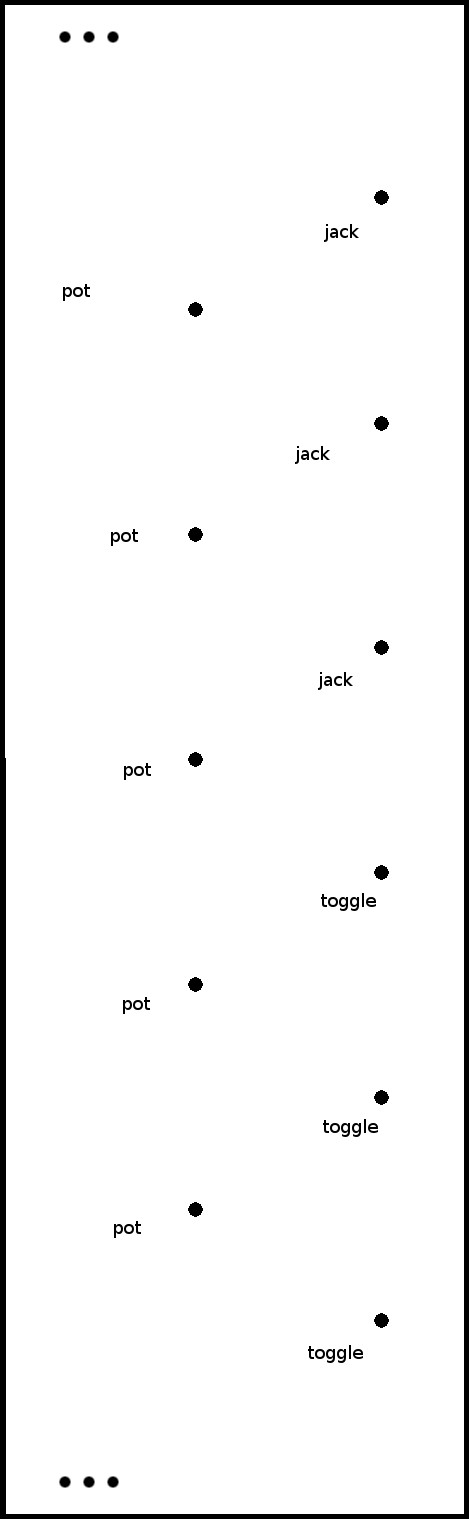

If you'd like to drill your own panel, here is the drill guide that I use to make these panels. It should be printed at 300dpi.
