VC CLOCK/DIVIDER

This circuit generates a clock signal output and up to six additional outputs whose frequencies are divided by the master clock. There is an option for PWM on each of the divided clock outputs which sacrifices two of the outputs (4 divded outputs instead of 6). There are also options for random division and division of external clocks.
The board for this circuit has 4 CV mixers with over voltage protection which are not tied directly to any parameter, this gives the builder of the circuit options as to which parameters are voltage controlled.

For complete descriptions of the way the module is used, and how to build it, download this PDF file.

If you have a Revision 1 board (With transistor buffers) this is the documentation.

Price for 1 board and 1 preprogrammed PIC $24

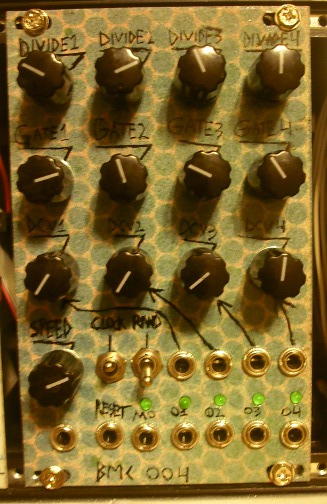

An unfinished Eurorack panel is available for this project. More information on my panels is here. It's layout is a little different than the panel pictured to the left, here is a legend for the panel.
If you'd like to drill your own panel, feel free to use my drill guide. That image should be printed at 300dpi to scale properly.

Email Michael@Bartonmusicalcircuits.com to place an order.
