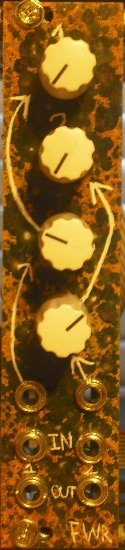

BMC21. Full Wave Dual Rectifier

This is an all analog synthesizer module used to alter the timbre and create new harmonic content. It consists of two identical full-wave rectification circuits, which can be used seperately or one cascading into the other. Each circuit has a manual bias offset as well as external CV that can be used to offset the bias.

The board features PC mounted pots for less wiring, and mounting holes for flexibility in panel layout. There are Eurorack and MOTM power connecters.

Here is an MP3 demo of the two rectifiers run in series with LFOs modulating their bias.
Here is an MP3 demo of two rectifiers run in series with VCOs modulating their bias, the VCO's are synced to the oscillator on the input's frequency and are having their inputs modulated by LFOs.

Here is a youtube demo of the module.

For complete information on this module and some mp3 demos, download this PDF file.

PCBs are for sale for $8 each.
Unfinished panels are for sale for $8 each. Please read this page on unfinished panels before ordering.

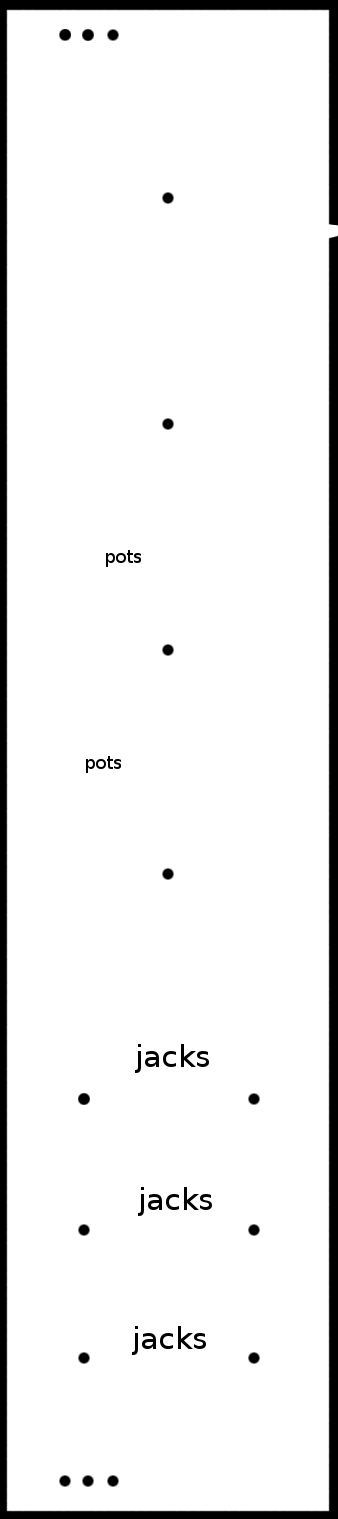

If you'd like to drill your own panel, here is the drill guide that I use to make these panels. It should be printed at 300dpi.
