BMC39 Step Rhythm Sequencer

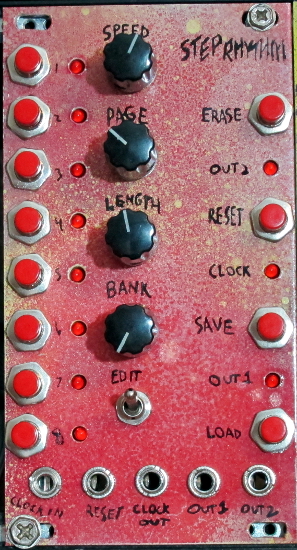

picture of the module

This is a step sequencer module. It has an internal clock with it's own output as well as two programmable output channels. It has EEPROM save/load function (saves patterns after powering down), and a range of 2 to 32 steps.

LEDs, Pots, and Switches are all mounted to the PCB to minimize wiring while allowing for 1/4" and 1/8" jacks to be used with the same PCB. Can be used with 12V or 15V systems

Boards are available now. Price for 1 PCB/PIC set is $20.

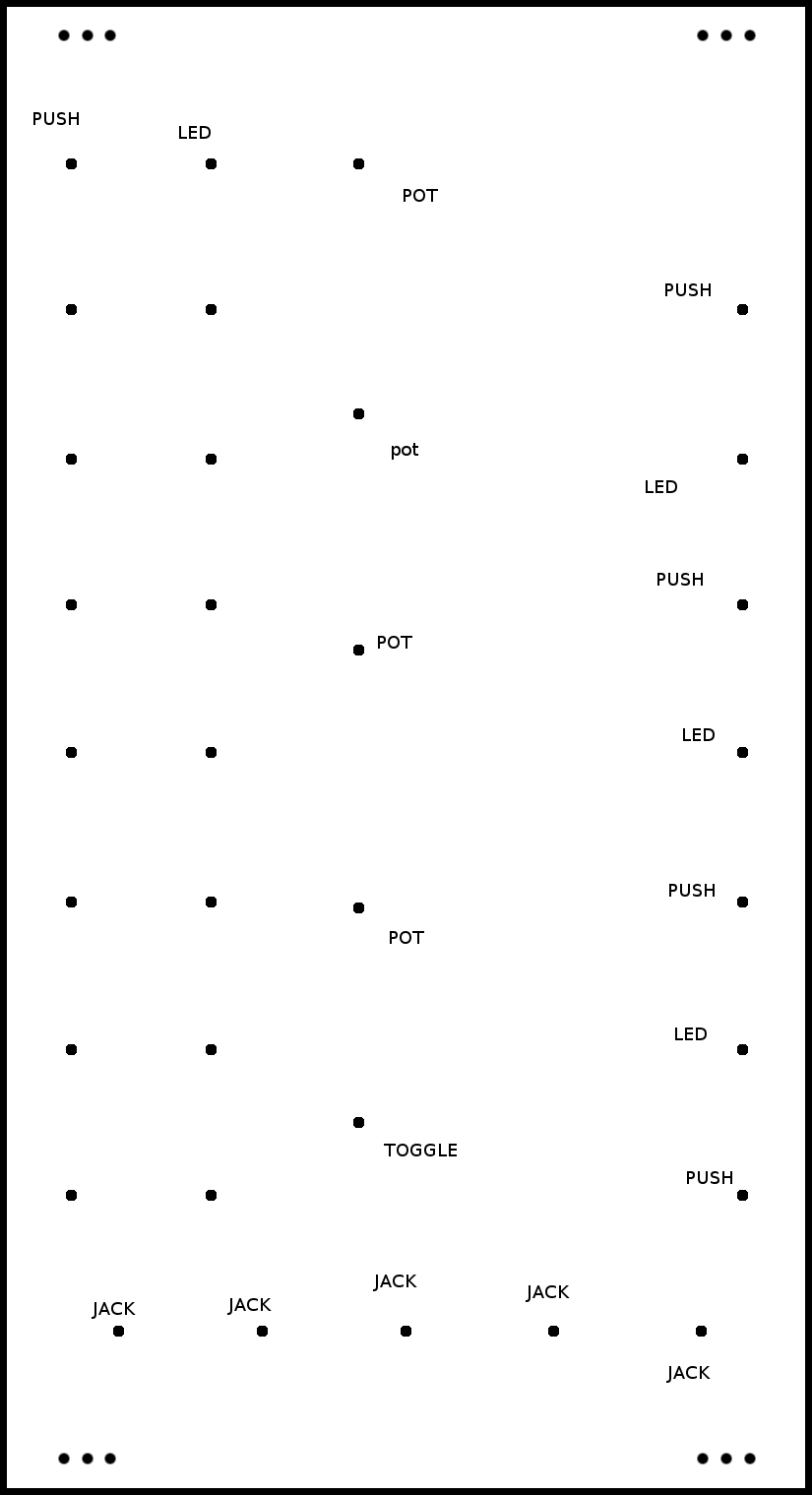

Unfinished eurorack panels are available for this project, they are 14HP and cost $9 each. There is more information here about panels. If you're interested in drilling your own panel for this project, feel free to use my drill guide. That image should be printed at 300dpi for proper scaling.
