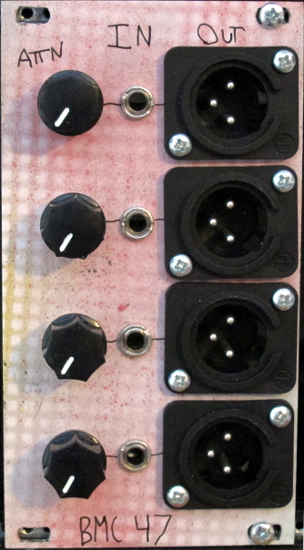

This module provides four balanced outputs for a modular system. Each channel has an attenuator. This module is useful for multi-track recording or for live sound.
The board features PC mounted pots, for less wiring and also mounting holes for flexibility. There are Eurorack and MOTM power connecters. It can be built in +/-12V or +/-15V systems without any modifications.
For complete descriptions of the way the module is used, and how to build it, including schematics and parts list; download this PDF file.
Boards are available now. Price for 1 PCB is $8.
Unfinished eurorack
panels are available for this project, they are 14HP and cost $12 each. I charge more for these than other panels because of the difficulty of drilling holes for the XLR jacks.
There is
more information here about panels. If you're interested in drilling your own panel for

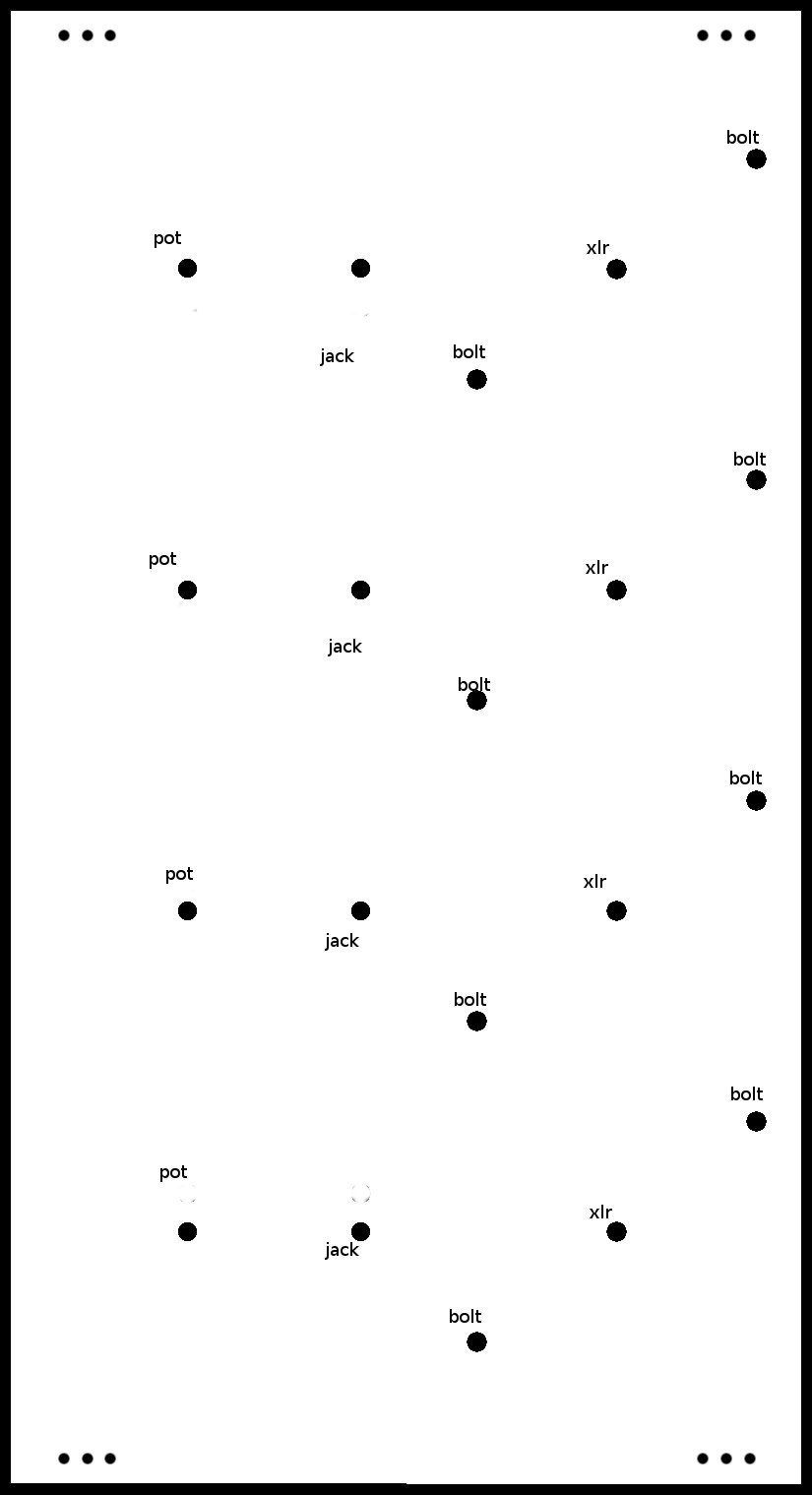

this project, feel free to use my
drill guide. That image should be printed at 300dpi for proper
scaling.
